G510 Gigabit 4G Router

产品大图

Industrial Grade router, Gigabit Ethernet, 802.11 b/g/n/ac, Compatible with 4G+/5G,

gateway_sm gateway_sm gateway_sm gateway_sm
  • Overview
  • Specification
  • Order Model
  • Documentation

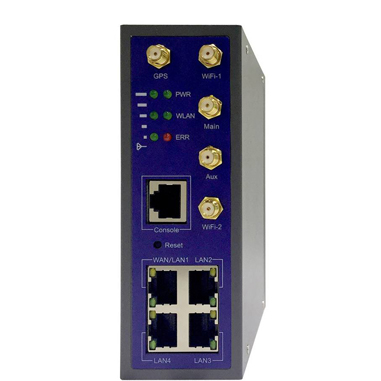

WLINK WL-G510 innovative industrial Powerful 4G LTE Router is built for harsh environments industrial applications and enables highly complex M2M and industrial IoT deployments.

With the world's leading ARM Cortex A7 900MHz CPU, the G510 achieves data rates up to 1 Gbps and enables gigabit routing. Especially, the internal communication interfaces of G510 are based on USB3.0 which maximum speed is up to 5Gbps, absolutely compatible with LTE advanced (Cat 6, Cat 11) and even future 5G cellular network. WL-G510 contains variants of optional models which are designed for different target regions and nearly cover all the main stream carriers worldwide.

Simultaneous 2.4G and 5G Wi-Fi gives the users two independent Wi-Fi network which also help reduce 2.4G Wi-Fi congestion and interference to ensure fast and reliable network service.

The WL-G510 is equipped with terminal block offering serial port, DI&DO port and secure power supply connectors for industrial application. The optional integrated GPS module allows you to locate the position of the device with a high accuracy or to use the GPS signal as the time base. Integrating into map services like Google Maps allows you to track the device if it's mounted in moving equipment.

Highlights

Ultra Performance

  • High-performance Cortex A7 900MHz CPU

  • High speed (Cat4/ Cat6/Cat11 )and reliable network

  • Simultaneous Dual-band 802.11 b/g/n/ac

  • Built-in 4-Port GBE Switch, reducing clutter and the need for

    extra equipment.

  • Optional EMMC/EUDM for extended storage







Absolutely Industrial Design

  • Industrial robust, heavy-duty metal enclosure and

    connectors designed, good heating diffusion

  • Terminal Block for Secure Power Supply

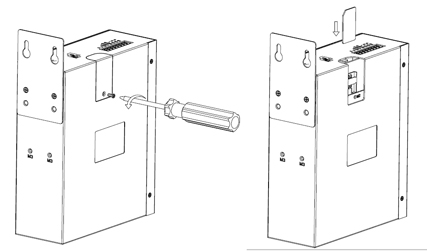

  • SIM screw cover design for secure SIM card

  • DIN Rail Mounting design for Industry

  • Shock and vibration resistant

  • Rich Serial and I/O interfaces

  • Scheduled reboot via Timing/SMS/Platform

  • Endure wide operating temperature range: -30 to 75 degree

Security & Protection

  • Recover from various failures automatically by built-in watch dog,

    Multi-link detection

  • Strong electromagnetic interference Resistance

  • Power Non-polarity and Anti-reverse

  • Redundant SIM slots with automatic switching for reliable network.

  • Protect sensitive data by firewall and VPN tunnel

    (IPsec/OpenVPN/GRE/L2TP/PPTP)

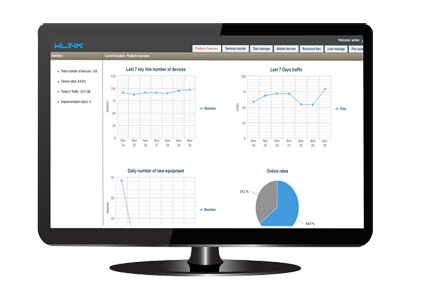

Cloud-based management & Maintenance besides

user-friendly WEB GUI

  • Efficiently management and quick configuration

  • Devices Status Monitoring

  • Remote Firmware Upgrade

  • Statistics and Aanalysis

  • Max support Number of Devices: 100,000+ units

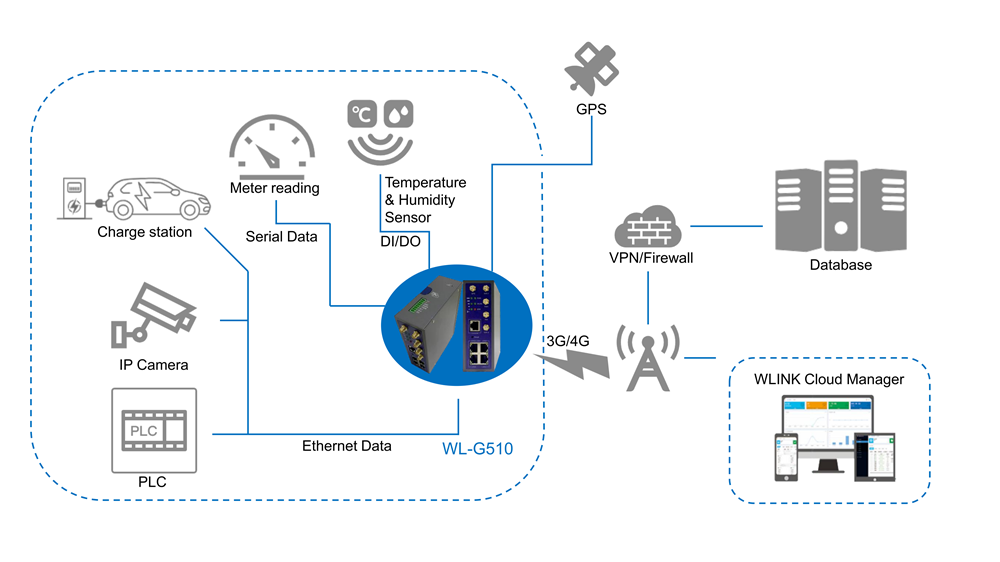

Typical Application


Energy


Digital Oil Field, Smart Mining, Solar, Smart Grid, Transformer Monitoring,  Connectivity for EV Charge Station, Wind Power


 Retail


ATM, POS(Point-of-Sale), Self-service Kiosk, Vending Machine, Lottery Machine, Branch network, Digital Signage, Video Surveillance, failover between WAN&4G/3G


 Industry


Remote Telemetry, Tanking Monitoring, Automation, Remote PLC, Remote AMR, Smart Irrigation, Urban Heat supply system, Geological Disaster Monitoring System, Smart Ware house, Smart Factory


 Smart City


Traffic, Street lighting, Public Safety &Security, 5G/4G Public hotspot, Environment monitoring, Video Surveillance, Smart Package Locker, Utilities, Wastewater Treatment, Smart Trash Can, Remote control of Golf Irrigation System, Smart Building


 Healthcare


Mobile Medical Equipment Remote Monitoring, Telemedicine


 Transportation


Bus WiFi, WiFi on Board, Vehicle video surveillance, Fleet tracking and management, Bus Advertising, Cold Chain Logistic, Highway Monitoring







Structure
