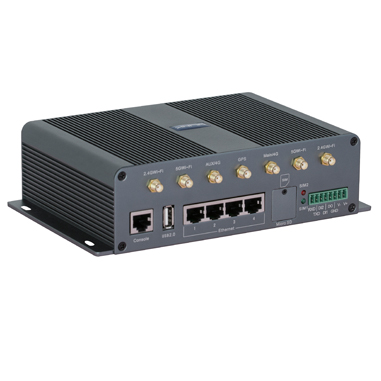

G500 Gigabit 4G/3G Powerful Router

产品大图

Wlink G500 4G / 3G Router is the rugged and powerful Gigabit router, built-in ARM Cortex A9 Dual Cor 800MHz CPU and 802.11 ac/b/g/n WiFi, caters for transportation and mobile deployments such as WiFi bus, WiFi on board and other Public transport.

gateway_sm gateway_sm gateway_sm gateway_sm
  • Overview
  • Specification
  • Order Model
  • Documentation

WLINK G500 is the rugged industrial cellular router which can work on 4G/3G cellular network to provide reliable, secure and high speed wireless connectivity, it is built-in one of the world's leading ARM Cortex A9 Dual Core 800MHz CPU, supporting Wi-Fi 802.11N and A/C. G500's heavy-duty design caters for transportation and mobile deployments such as Wi-Fi bus, Wi-Fi on board and other Public transit.

WLINK G500 equips with 4xGigabit Ethernet switch, serial port, I/O, USB as well as a variety of configuration option including GPS, SD Slot. It offers redundant SIM Slot for automatic switching for reliable network, plus terminal block power capability. VPN features also can be configured in WLINK router, allowing you to utilize virtual private network service through a 4G/3G wireless router and built for stresses and workload of a modern industrial or commercial environment.



Simultaneous Dual-Band 802.11n&ac Wi-Fi

WLAN standard IEEE 802.11ac is the benchmark for a

unique high-performance WLAN experience.

Simultaneous 2.4G and 5G Wi-Fi gives you two

independent Wi-Fi networks which also help reduce 2.4G

Wi-Fi congestion and interference to ensure fast and

reliable network service to your passengers.











Integrated Captive Portal with Social Wi-Fi

WLINK G500 comes with a customizable captive portal

where shows a welcome message informing the passenger

of the conditions of access, may allow the passenger to

login and  require authentication, payment and acceptable

use policies, the captive portal option contents splash page

for images or video advertising.


Enjoy journey on the road

Enjoy internet and abundance offline programs, which

makes journey become more exciting. Increase ridership

and customer attraction by providing additional network

service to passengers.

GPS Fleet Tracking and Management

WLINK G500 is with the option to built-in GPS module for

fleet tracking and management, reduce your stress, improve

your fleet's performance.

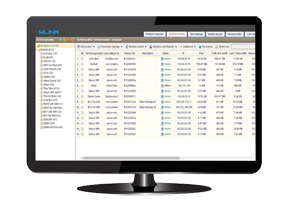

Cloud-Based Platform Management

WLINK cloud management platform provide easy setup, centralized configuration, network analysis and maintenance of large installations of remote WLINK series devices. With the platform,

the operator can remotely manage and monitor all of routers, Wi-Fi users status, update configuration files, Statistics, firmware upgrade and advertisement Update.

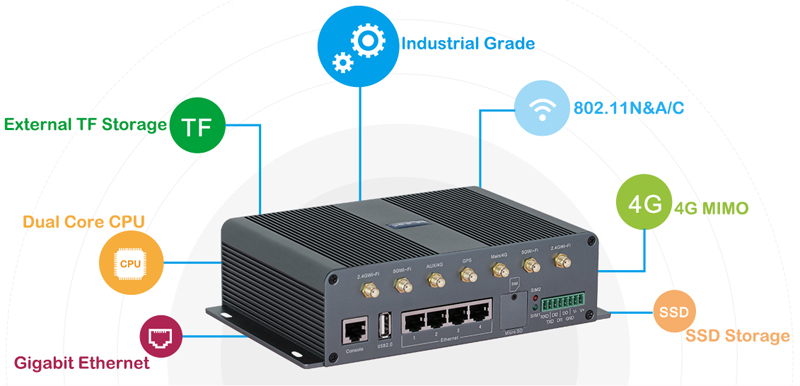

Basic Features

  • Industrial robust, heavy-duty metal enclosure and connectors designed for shock and high vibration environments

  • High data speed via FDD / TDD 4G or 3G network, 2G backward compatible

  • Strong electromagnetic interference Resistance

  • Built-in watch dog, Multi-link detection

  • Four Gigabit Ethernet ports for networking flexibility

  • High speed 802.11 ac/b/g/n Wi-Fi support as access point or client with 2x2 MIMO antenna technology and integrated hotspot functionality

  • USB for additional interfaces or extra storage

  • 2x Digital Input(DI), 1x Digit al Output (DO), suit for I/O communication

  • MIMO antenna for 4G

  • ARM Cortex A9 Dual Core, 800MHz CPU.

  • Standard equipped with Dual SIM for Failover or Backup between two network

  • Schedule reboot via SMS/Timing

  • Always online, reboot automatically if disconnected to ensure continual connection

  • Flash - 32MB

  • NAND Flash 512MB

  • DDR2：16Bit 128MB

  • SD slot (32 ~ 256GB option)

  • Shock and vibration resistant

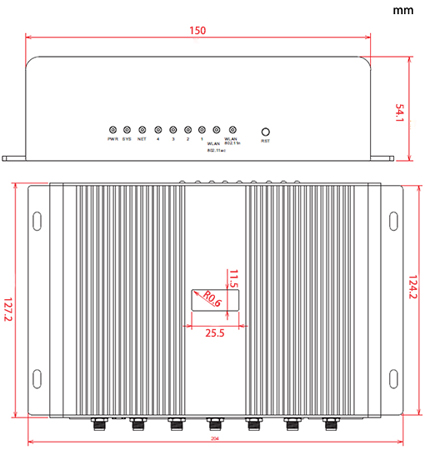

Product Structures
