R320 4G router

产品大图

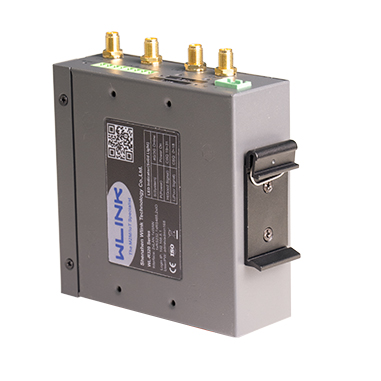

WL-R320 is the professional IoT 4G router with 4G LTE module for wireless M2M applications.

gateway_sm gateway_sm gateway_sm gateway_sm
  • Overview
  • Specification
  • Order Model
  • Documentation

WL-R320 is the professional IIoT router with 4G LTE module for wireless M2M applications. It is based on high quality module, state-of-the-art CPU processor and offers the users with stable connection and high data throughput over 4G LTE Cat.4 network. It is consisted of rugged housing and various of interfaces including Dual SIM slot, Ethernet 100Mpbs, RS232/485 serial and I/O ports.

WL-R320 Router is dedicated for the users looking for easy and robust mobile internet access. Internet connection is easily available and configurable via internet browser without any need of installing software or drivers. Together with its DIN Rail mount design and wide supply voltage range, make it be the universal solution for all low-volume M2M/(I)IoT and mobile data applications including metering, traffic systems, transportation and logistics, security, vending machines and facility management.

High speed 300Mbps 802.11b/g/n Wi-Fi also make it ideal for the applications which hotspot functionality is required.


 HIGHLIGHTS






Extensive Interfaces, Enabling Flexible Expansion

Multiple interfaces, including 10/100M Ethernet, RS-232, RS-485 and DI/DO. IP-based PLC communication, with support for IPv6, and plug-and-play terminals. GPS tracking and Storage is option to be added on R320.

Incredible Mobile Network Speed

Multiple interfaces, including Gigabit Ethernet, RS-232, RS-485 and DI/DO. IP-based PLC communication, with support for IPv6, and plug-and-play terminals. GPS tracking and Storage is option to be added on R320.





Secure and Reliable Network

Support robust security features, such as PPTP/L2TP, OpenVPN, IPsec, NAT, port forwarding, a stateful firewall and packet filtering, data encryption, Access Control List (ACL) and provide secure, reliable communications.

Easy to deploy and mount

Support various of mounting way includes DIN Rail Mount, Rack Mount and Desktop etc.

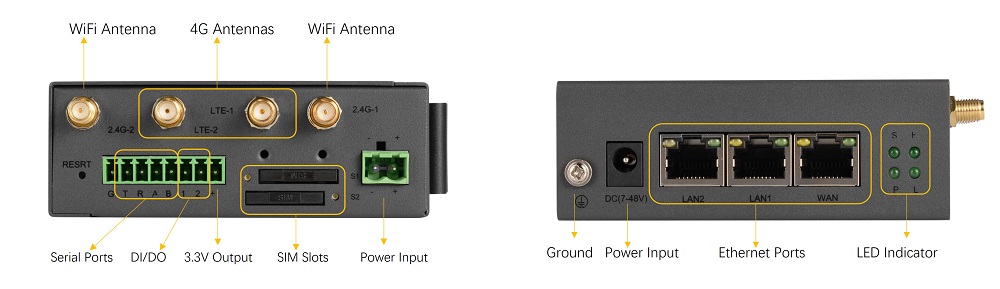

INTERFACE DIAGRAM

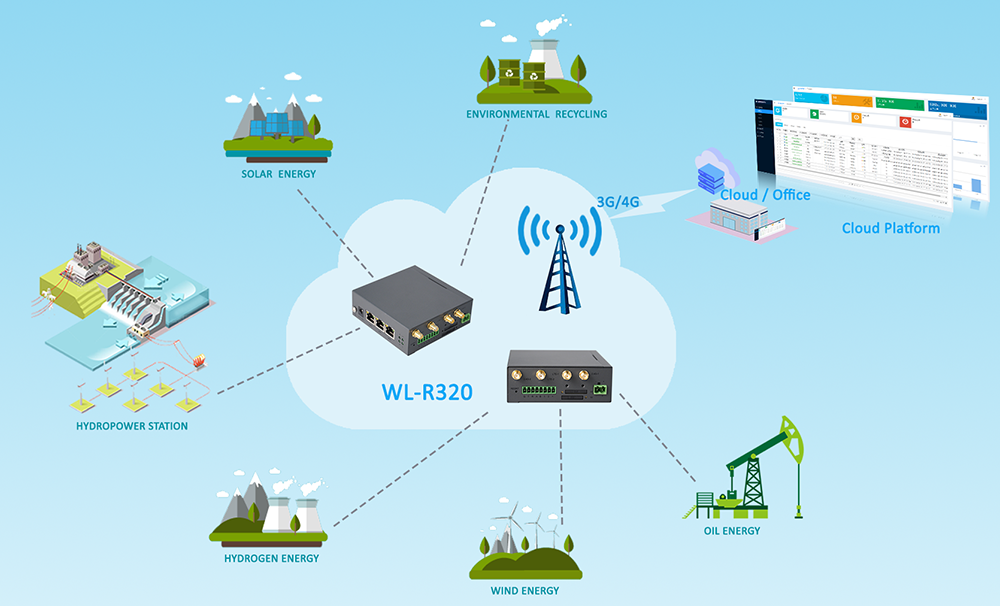

CLASSIFICATION APPLICATION
