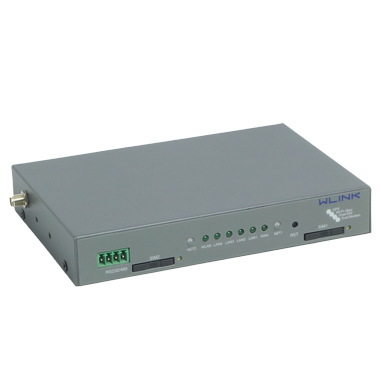

G520 Multi Gigabit LAN/WAN 4G/5G Router

产品大图

WLINK WL-G520 is an industrial 4G LTE router with Gigabit Ethernet Port, offering enhanced performance over WL-R520.

module
gateway_sm gateway_sm gateway_sm
  • Overview
  • Specification
  • Order Model
  • Documentation



 WLINK G520 is the next-generation industrial 4G LTE router, built to deliver unmatched performance and reliability. As the enhanced version of the WL-R520, the G520 features Gigabit Ethernet ports and dual-band 2.4G and 5G Wi-Fi, offering users two independent Wi-Fi networks. This innovative design reduces 2.4G Wi-Fi congestion and interference, ensuring faster speeds and a more stable connection for your critical operations.


Powered by the world-class ARM Cortex A7 900MHz CPU, the WL-G520 achieves blazing-fast data rates of up to 1 Gbps, enabling seamless gigabit routing for even the most demanding industrial environments.


But that’s not all. The WL-G520 is packed with advanced features to meet your industrial needs:Dual SIM slots for automatic failover, ensuring uninterrupted connectivity, Serial ports and a wide range of configuration options, including GPS and storage capabilities. Terminal block power input for flexible power supply options. Advanced routing functionality to segment networks and protect mission-critical data. Robust redundancy technologies to guarantee continuous operation, even in the harshest conditions.


Built with a rugged design and engineered to withstand extreme industrial temperature ranges, the WL-G520 is the perfect solution for a wide variety of industrial applications. Whether you’re in manufacturing, transportation, or remote monitoring, the WL-G520 delivers the speed, reliability, and durability you need to stay connected.


Upgrade to the WLINK WL-G520 and experience the future of industrial connectivity today.





Highlights


Ultra Performance

  • Powerful Cortex A7 900MHz CPU

  • Blazing-Fast LTE Speeds: Support for Cat4, Cat6, and Cat12

  • Simultaneous Dual-Band 2.4G & 5G Wi-Fi

  • Built-in 5-Port Gigabit Ethernet Switch eliminating clutter and the need for additional equipment.

  • Expandable Storage Option







Absolutely Industrial Design

  • Rugged Metal Enclosure: Heavy-duty design with superior heat dissipation

  • Screw cover design ensures your SIM card stays safe and secure.

  • DIN Rail Mounting design for Industry

  • Shock & Vibration Resistant

  • Scheduled reboot via Timing/SMS/Platform

  • Screw cover design ensures your SIM card stays safe and secure.

Security & Protection

  • Automatic recovery from failures with a built-in watchdog

  • Multi-link detection for enhanced reliability

  • Strong resistance to electromagnetic interference

  • Non-polarity and anti-reverse power protection

  • Redundant SIM slots with automatic switching for uninterrupted network connectivity

  • Advanced data protection through firewall and VPN tunneling

    (IPsec, OpenVPN, GRE, L2TP, PPTP)




Cloud-based management & Maintenance besides

user-friendly WEB GUI

  • Efficient device management and rapid configuration.

  • Real-time device status monitoring for enhanced oversight

  • Remote firmware upgrades to ensure optimal performance.

  • Comprehensive statistics and analysis for data-driven insights.

  • Supports up to 100,000+ devices for scalable deployment.

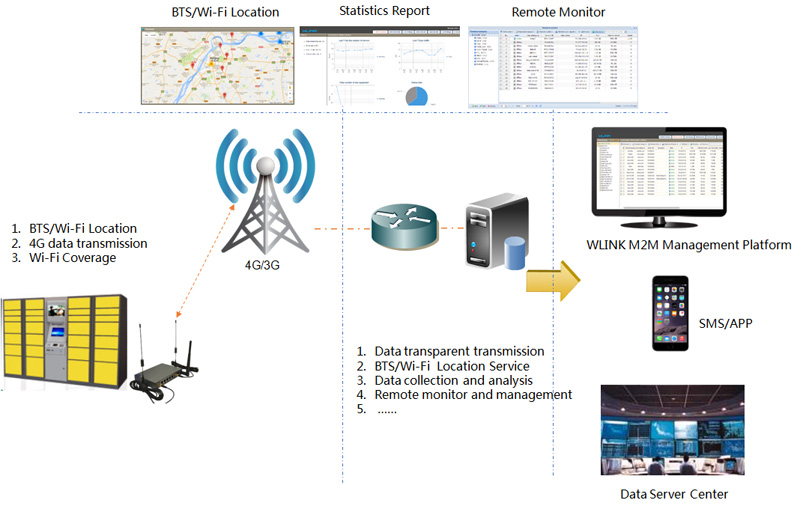

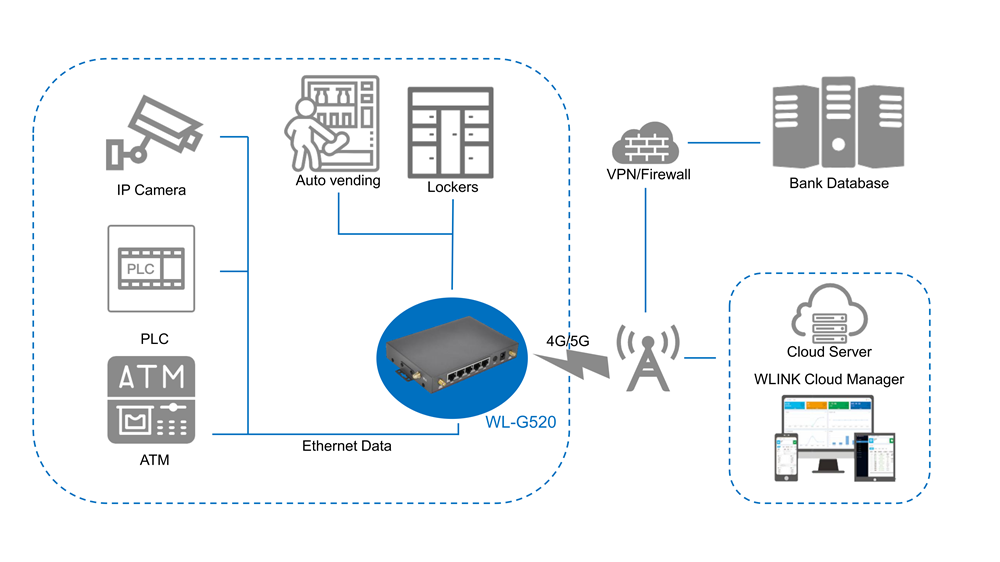

Typical Application



Energy


Digital Oil Field, Smart Mining, Solar, Smart Grid, Transformer Monitoring,  Connectivity for EV Charge Station, Wind Power


 Retail


ATM, POS(Point-of-Sale), Self-service Kiosk, Vending Machine, Lottery Machine, Branch network, Digital Signage, Video Surveillance, failover between WAN&4G/3G


 Industry


Remote Telemetry, Tanking Monitoring, Automation, Remote PLC, Remote AMR, Smart Irrigation, Urban Heat supply system, Geological Disaster Monitoring System, Smart Ware house, Smart Factory


 Smart City


Traffic, Street lighting, Public Safety &Security, 5G/4G Public hotspot, Environment monitoring, Video Surveillance, Smart Package Locker, Utilities, Wastewater Treatment, Smart Trash Can, Remote control of Golf Irrigation System, Smart Building


 Healthcare


Mobile Medical Equipment Remote Monitoring, Telemedicine


 Transportation


Bus WiFi, WiFi on Board, Vehicle video surveillance, Fleet tracking and management, Bus Advertising, Cold Chain Logistic, Highway Monitoring

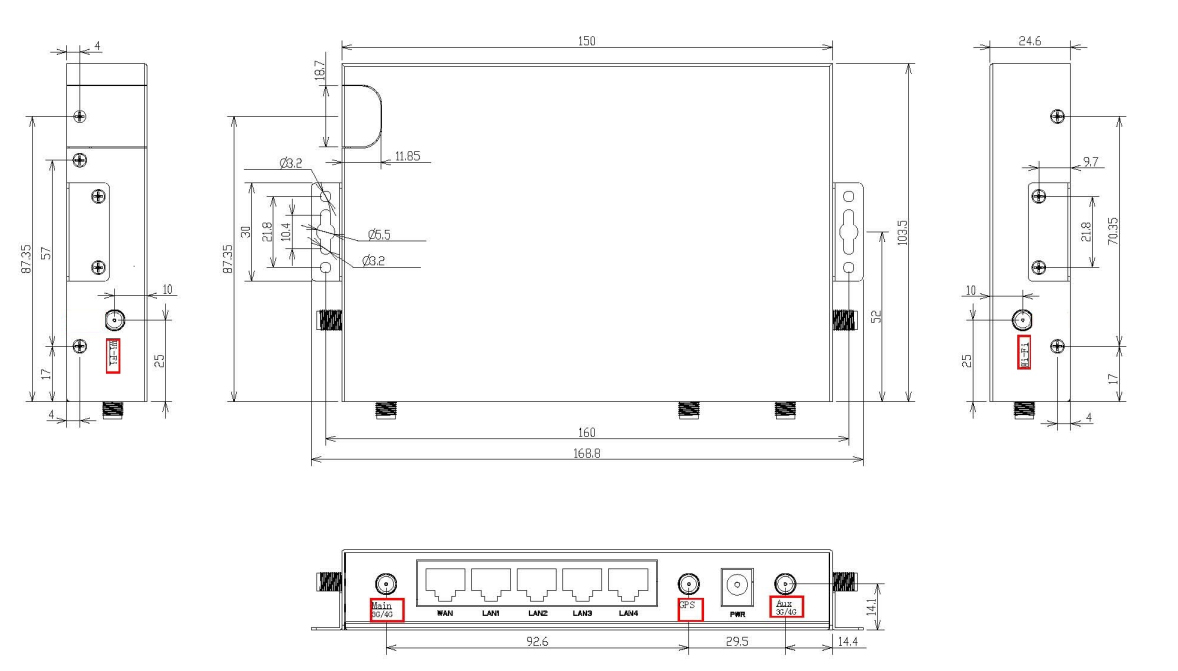

Structure
