5G/4G/3G Cellular Antenna
Wlink supply various of cellular antenna which work with Wlink 5G/4G/3G router and modem including Magnetic Antenna, Rubber Antenna, Fiberglass Antenna and SharkFin Antenna
- Overview
- Specification
- Order Model
- Documentation
| Wlink Antenna |  |  |  |
|  |

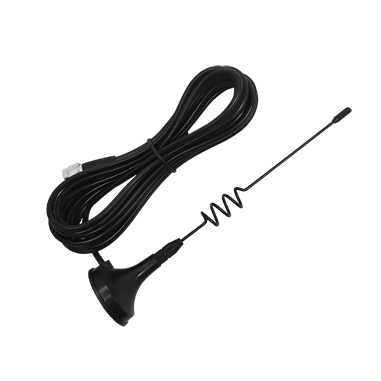

| WL-MA003 Mag | WL-MA005 Mag | WL-MA010 Mag | WL-MA5G-3 Mag | WL-FA-003 Fiberglass | |
| Specification | |||||
| Type | LTE/UMTS/GSM | LTE/UMTS/GSM | LTE/UMTS/GSM | 5G/LTE/UMTS/GSM | LTE/UMTS/GSM |
| Frequency range（MHz） | 698-960/1710-2700MHz | 98-960/1710-2700MHz | 698-960/1710-2700MHz | 600-960/1710-2680/ 3400-3600/4800-4900 | 698-960/1700-2700MHz 806-960/1700-2700MHz |
| Gain (dBi） | 3dBi | 5dBi | 9dBi | 3dBi | 3dBi |
| VSWR | <=3 | <=2 | <=2 | <=3 | <=2 |
| Input Impedance（Ω） | 50 ohm | 50 ohm | 50 ohm | 50 ohm | 50 ohm |
| Polarization | Linear\Horizontal | Linear\Horizontal | Vertical | Vertical | Vertical |
| Maximum input power (W) | 10W | 50W | 100W | 10W | 10W |
| Lightning protection | DC Ground | DC Ground | DC Ground | DC Ground | DC Ground |
| Input connector type | SMA Male | SMA Male | SMA Male | SMA Male | SMA Male |
| Mechanical Specifications | |||||
| Mounting | Screw Thread | Screw Thread | Screw Thread | Screw Thread | Screw Thread |
| Dimensions (mm) | Φ29.4x 205mm | Φ47x 290mm | Φ62x 575mm | Φ60x 201mm | Φ90x 280mm |
| Antenna weight (kg) | 51g | 91g | 265g | 75g | 700g |
| Colour | Black | Black | Black | Black | Black |
| Cable Length | 3mts | 3mts | 3mts | 3mts | Black |
| Material of Coaxial Cable | RG-174 | RG58U(5m) | RG58U(5m) | RG178 | RG178 |
| Operating temperature (°c) | -40℃ ~ +75℃ | -40℃ ~ +75℃ | -40℃ ~ +75℃ | -30℃ ~ +60℃ | -40℃ ~ +80℃ |
| Recommended Router /Modem | Wlink series router and modem | ||||
| Wlink Antenna |  |  |  |
|  |

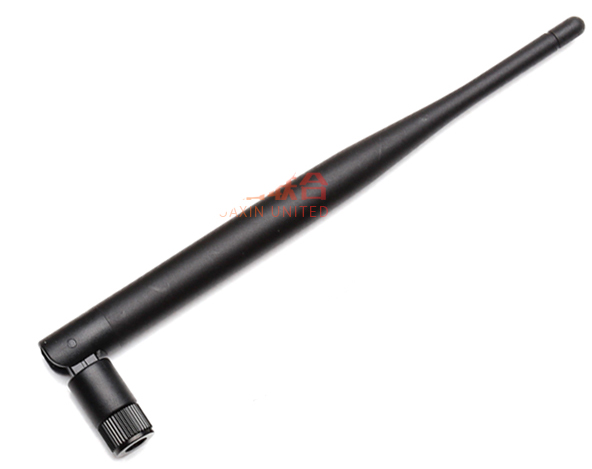

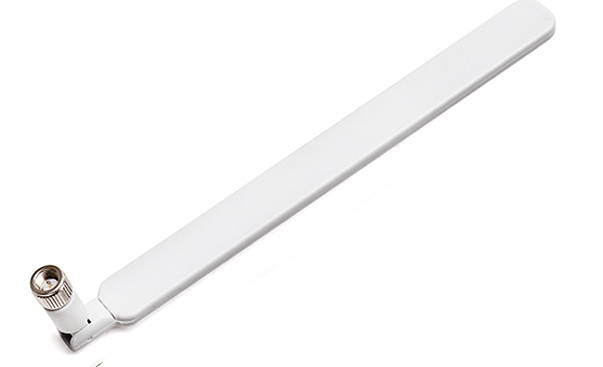

| WL-RA-W3B Rubber | WL-RA-M6B Rubber | WL-RA-M6W Rubber | WL-RA5G-M5G-3 | WL-NA-M3 N Type | |
| Specification | |||||
| Type | LTE/UMTS/GSM | LTE/UMTS/GSM | LTE/UMTS/GSM | 5G/LTE/UMTS/GSM | LTE/UMTS/GSM |
| Frequency range（MHz） | 824-960MHz/1710-2700MHz | 700-960MHz/1710-2700MHz/1800-1990MHz/1990-2700MHz | 700-960MHz/1710-2700MHz/1800-1990MHz/1990-2700MHz | 600-960/1710-2680/ 3400-3600/4800-4900 | 698-960/1700-2700MHz |
| Gain (dBi） | 3dBi | 5dBi | 5dBi | 3dBi | 5dBi |
| VSWR | <=2 | <=1.5 | <=1.5 | <=3 | <=2 |
| Input Impedance（Ω） | 50 ohm | 50 ohm | 50 ohm | 50 ohm | 50 ohm |
| Polarization | Vertical | Vertical | Vertical | Vertical | Vertical |
| Maximum input power (W) | 10W | 10W | 10W | 10W | 10W |
| Lightning protection | DC Ground | DC Ground | DC Ground | DC Ground | DC Ground |
| Input connector type | SMA Male | SMA Male | SMA Male | SMA Male | SMA Male |
| Mechanical Specifications | |||||
| Mounting | Screw Thread | Screw Thread | Screw Thread | Screw Thread | Screw Thread |
| Dimensions (mm) | 5mm+ 175mm | 25mm+165mm | 25mm+165mm | 19mm+171mm | 21mm+ 180mm |
| Antenna weight (kg) | 14g | 18g | 18g | 14.3g | 70g |
| Colour | Black | Black | White | Black | Gray |
| Cable Length | N/A | N/A | N/A | N/A | N/A |
| Material of Coaxial Cable | RG316 | RG178 | RG178 | RG178 | RG178 |
| Operating temperature (°c) | -40℃ ~ +80℃ | -40℃ ~ +80℃ | -40℃ ~ +80℃ | -40℃ ~ +60℃ | -40℃ ~ +80℃ |
| Recommended Router /Modem | Wlink series router and modem | WL-ODU300 | |||
