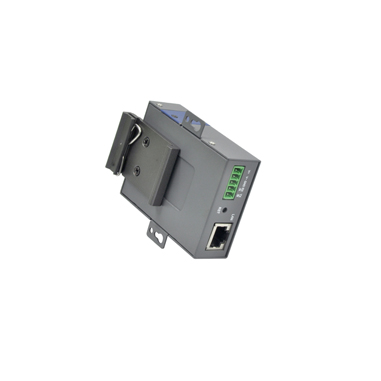

WLINK R100 Cellular Router is an advanced IoT (Internet of Things) and M2M (Machine-to-Machine) mobile broadband router. It optionally operates on 4G/3G cellular networks to deliver reliable, secure, and high-speed mobile connectivity with built-in VPN support. Designed for industrial applications, the R100 is a powerful, programmable router featuring a high-performance, compact, and rugged mechanical design. Its small form factor allows for seamless integration into systems where space is a critical factor, making it ideal for applications such as intelligent transportation systems, telemetry, ATMs, vending machines, and video surveillance.

WLINK R100 is equipped with a single 10/100 Ethernet LAN port and one serial port. It also supports VPN configuration, enabling users to establish secure virtual private network connections via 4G/3G wireless networks. Built to withstand the stresses and demands of modern industrial and commercial environments, the R100 ensures robust performance in challenging conditions.

Setting up the WLINK R100 Cellular Router is quick and straightforward. Simply insert a 4G SIM card into the designated slot, connect the antennas, and power on the device. To access the internet, enter the correct APN settings through the web-based configuration interface. Once configured, the router will establish a high-speed 4G mobile broadband connection, providing reliable internet access for your applications.

Basic Features

• Durable Industrial Design: Compact metal housing with robust construction for harsh environments.

• High-Speed Connectivity: Supports FDD/TDD 4G and 3G networks, with backward compatibility for 2.5G.

• Electromagnetic Interference Resistance: Built to withstand strong electromagnetic interference.

• Thermal Performance: Excellent heat endurance and radiation dissipation capabilities.

• Reliability Features: Built-in watchdog and multi-link detection for uninterrupted operation.

• Advanced Security: Supports multiple VPN protocols, including PPTP, L2TP, GRE, IPsec, and OpenVPN.

• Industrial Protocol Support: Compatible with ModBus TCP for industrial applications.

• High Reliability: Hardware link self-recovery ensures consistent performance.

• Enhanced Connectivity: MIMO antenna technology for superior 4G signal reception.

• Always Online: Automatic reboot and reconnection in case of disconnection to maintain continuous connectivity.

• Private Network Access: Supports APN and VPDN for secure wireless private network access.

• Network Monitoring:  LCP/ICMP/flow/heartbeat checks to ensure network availability and      usability.

• Flexible Configuration: Web-based interface, CLI, SSH, and management platform support for easy setup and      management.

• Network Management: SNMP support for efficient network monitoring and NTP for time synchronization.

• Remote Management: Local and remote configuration, status monitoring, and firmware upgrades.

• DHCP Server: Built-in DHCP server for simplified network configuration.

• DNS Support: DNS proxy and Dynamic DNS (DDNS) for seamless domain management.

• Timing Operations: Supports scheduled tasks and timing-based operations.

• Status Indication: LED indicators for real-time status monitoring.

• Rugged Design: Shock and vibration resistant for reliable operation in demanding environments.

Optional Features

• Flexible Network Support:  Compatible with FDD/TDD 4G and 3G networks, including DC-HSPA+, HSPA+,  HSPA, UMTS, and WCDMA.

• Serial-to-IP Communication: Enables seamless integration of serial devices into IP-based networks.

• M2M Management Platform: Optional software available for advanced machine-to-machine (M2M) management and monitoring.

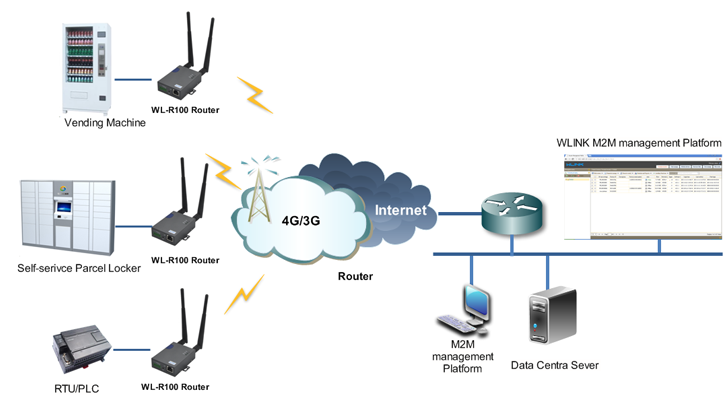

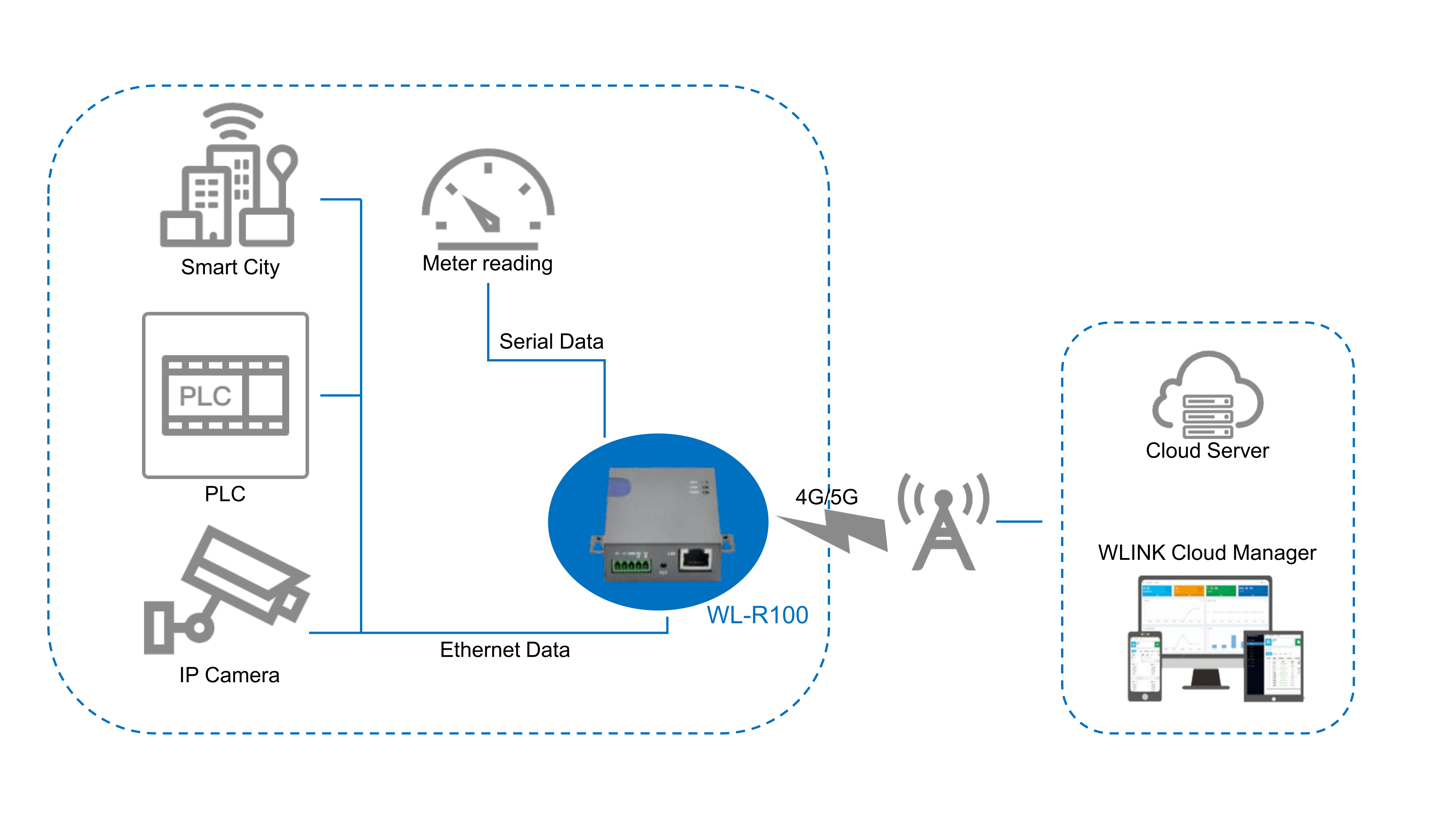

Typical Application

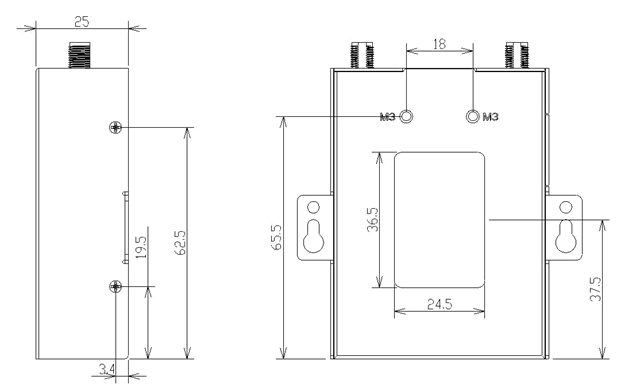

Product Structure
