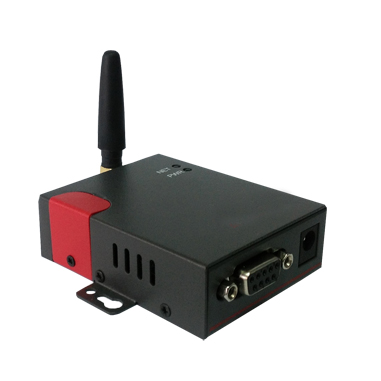

D80 Serial to IP GPRS Modem

产品大图

Wlink D80-1 is Industrial Serial to IP cellular GPRS modem (called as 2G DTU as well) which convert the serial data (RS232/485/422) into IP data and then transfer to data center through GPRS 2.5G mobile network.

gateway_sm gateway_sm gateway_sm gateway_sm
  • Overview
  • Specification
  • Order Model
  • Documentation

The D80 Series is a rugged, industrial-grade serial-to-IP cellular modem (also known as 2G DTU), specifically designed for M2M applications. Equipped with RS232/RS-485/RS-422/TTL interfaces and supporting PPP, TCP/IP, and DDP protocols, it seamlessly converts serial data into IP data and transmits it to your data center through a fully transparent channel over 2G GSM GPRS networks for small data application.

This robust modem enables simple, rapid integration of cellular connectivity into M2M systems, making it ideal for industrial automation, remote monitoring, and IoT deployments.



The D80 DTU features a robust, reliable, and compact metal casing designed for long-life operation in demanding environments. Its onboard standard design ensures easy deployment and maintenance, making it a versatile solution for a wide range of applications.

Globally proven, the D80 is widely used in industries such as: Power SCADA systems, Oil fields and coal mines, Weather forecasting and environmental monitoring, Water conservancy, heating, and natural gas operations, Petroleum and energy sectors


Basic Features

  • Optimized EMC design for industrial environments

  • Industrial-grade 2G cellular module for small date application

  • Supports APN and VPDN wireless private networks

  • Transparent data transmission supporting dynamic IP addresses

  • Standard protocols: PPP, TCP/IP, and UDP/IP

  • Wide-range voltage input with smart power management

  • External power on/off control for flexible operation

  • LED status indicators for real-time monitoring

  • Reliable, flexible, and easy to deploy in diverse environments


Optional Features


  • Multiple operation model

    Always Online:

    Automatically connects to 2G GSM GPRS cellular network at startup

    Auto-reconnects when offline to maintain persistent connectivity

    Idle Offline:  Triggers online mode via user data, incoming call, or SMS

    Command Control: Online/offline switching via user equipment commands

    GPRS/SMS Backup:  Mutual backup between GPRS and SMS channels


  • Multiple data service centers communications

    Supports up to 4 data service centers communications

    Supports main/backup data service centers communications

    Supports customized setting for each data service center


  • Flexible and utilitarian data communications

    Supports TCP/IP, UDP/IP, DDPTM, SMS and AT

    Self-defines transparent or protocol communications

    Self-defines customized data frame separator

    Self-defines reconnecting interval

    Self-defines heart-beat data frame


  • Parameters configuration and remote management

    Built-in parameters configuration menu

    Configuration tool based on PC

    Remote parameters configuration via data service center

    Remote parameters configuration by SMS

    Parameters configuration via AT+ commands

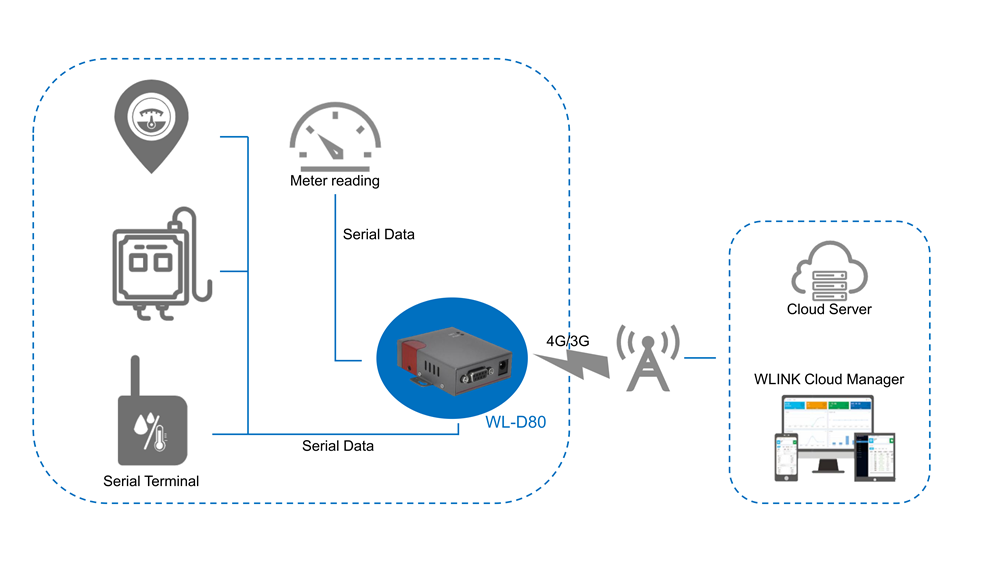

Typical Application


  • Power SCADA

  • Oil field,

  • Coal mine,

  • Weather forecast

  • Environment protection,

  • Water conservancy,

  • Heating, natural gas,

  • Petroleum
