Power over Ethernet, or PoE, is a technology that allows devices to be powered by Ethernet cables. PoE is an excellent alternative to traditional power outlets because it allows you to place devices wherever you won’t find a power outlet. PoE devices come in two different power device types: power sourcing equipment (PSE) and powered device (PD). PSE devices are responsible for providing power to PDs.

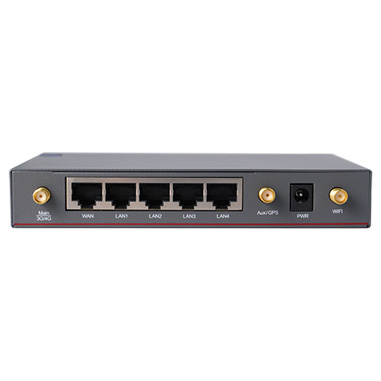

 The standard PoE 802.3.af technology can be customized to add on R520, that is WLINK R520-P. With PoE technology, R520-P can delivers electrical power to PoE-enabled devices using a CATx network cable. WLINK R520-P is the most common type of PSE device, it allows you to quickly add PoE power to your network system. R520-P 4G LTE PoE Routers offer a simple and efficient way to power PoE devices like IP cameras, PoE access points or other Edge equipment.

 R520-P 4G router is an ideal wireless data transmission device for applications that transmit large data load because of ultimately fast transfer speed in 4G network reaching up to 150M download and up to 50M upload. VPN features also can be configured in WLINK router, allowing you to utilize virtual private network service through a 4G/3G wireless router and built for stresses and workload of a modern industrial or commercial environment.

 With dual SIM optional, R520-P series router could backup network between the two SIM cards to ensure continuous connection. The router also option with GPS capability, enable it ideal for fleet tracking or access management.

Basic Features

 Industrial Grade Design & Durability

Rugged Construction: Compact metal housing designed for harsh environments.

Shock and Vibration Resistance: Ensures reliable operation in high-stress conditions.

EMI/Heat/Radiation Resistance: Enhanced shielding for stable performance in electromagnetic interference-prone environments.

Built-in Watchdog and Multi-link Detection: Automatic fault recovery and link failover to minimize downtime.

Power over Ethernet (PoE)

PoE 802.3af/at Compliance: Four PoE ports with 60W total power output, delivers electrical power to a wide range of PoE-enabled devices using CATx network cables.

High-Speed Connectivity & Network Redundancy

Multi-Network Compatibility: 4G LTE (DL 150Mbps/UL 50Mbps), 3G /2.5G fallback.

Wi-Fi Support: 802.11b/g/n Wi-Fi with data rates up to 300Mbps.

Dual SIM Redundancy: Auto-switching between carriers for seamless connectivity.

Dual Modem Load Balancing (Optional): Traffic distribution across two modems/SIMs from different providers.

Industrial Protocol & Legacy Integration

ModBus TCP/RTU Support: Ideal for industrial automation and control systems, seamless integration with PLCs, SCADA systems.

Serial-to-IP (RS232/RS485): Connect legacy serial devices (e.g., sensors, meters) to modern IP networks.

MQTT Support: For IIoT and cloud-based industrial automation.

Network Security & Data Protection

VPN Suite: IPsec, OpenVPN, DMVPN, WireGuard, ZeroTier, GRE, etc. for encrypted tunnels over 4G/3G.

APN/VPDN Support: Isolated private networks for sensitive data transmission.

802.1X Authentication: Port-based NAC for Wi-Fi and wired networks.

Captive Portal (Optional): Customizable guest Wi-Fi access with Terms of Service.

Network Management & Monitoring

Unified Management: Web UI, CLI, SSH, SNMP v3, and cloud platforms.

Proactive Health Checks: ICMP/LCP heartbeat, traffic flow monitoring, automated alerts.

Scheduled Reboot & Always Online: Self-healing for sustained uptime.

DHCP/DNS Services: Dynamic IP allocation, DNS proxy, and DDNS for remote access.

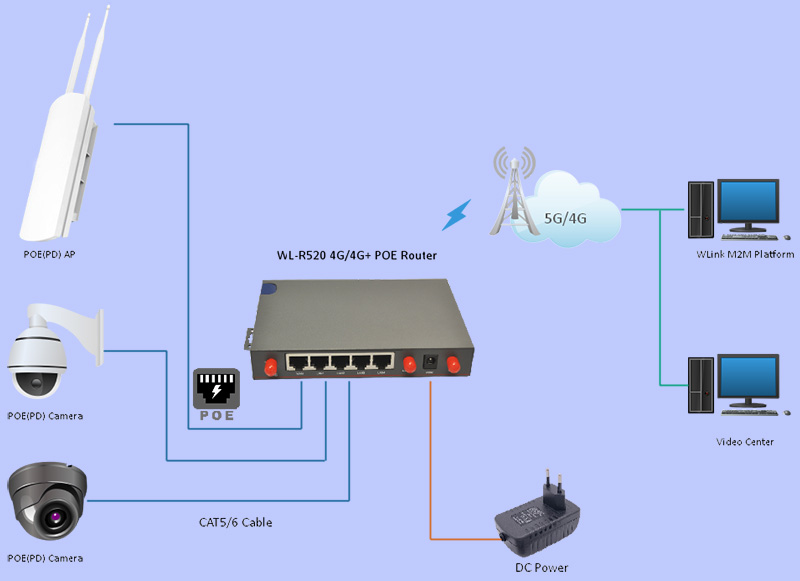

Typical Application

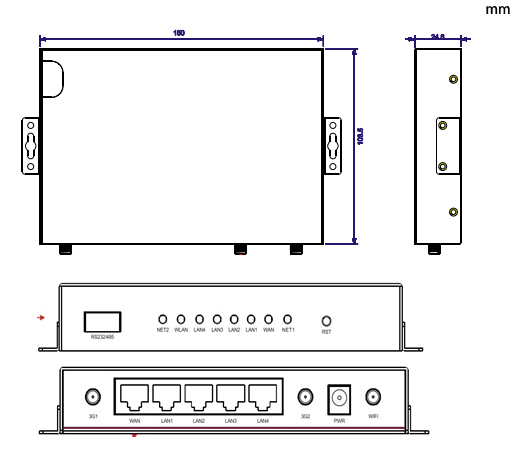

Product Structure
