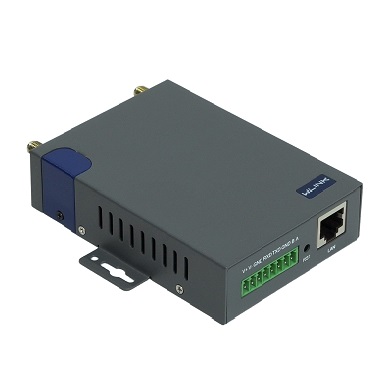

R130 IoT Cellular router

产品大图

WLINK R130 is a compact and versatile gateway cellular router tailored for the users/ integration companies to integrate into their system for various of M2M/(I)IoT application

gateway_sm gateway_sm gateway_sm gateway_sm
  • Overview
  • Specification
  • Order Model
  • Documentation

WLINK R130 is a compact and versatile 4G gateway cellular router tailored for the users/ integration companies to integrate into their system for various of M2M/(I)IoT application especially where installation space has challenge including metering, traffic systems, military, homeland-security and emergency-response. It is engineered to meet diverse interface requirements, featuring a configuration that includes 1xLAN, 1xRS232, and 1xRS485 ports. The R130 is equipped with a state-of-the-art CPU processor, ruggedized enclosure and powerful internal components to withstand extreme temperature, dust and moisture. Its terminal block for secure power supply, ensuring reliability and efficiency in demanding environments.

Powered by an embedded Linux operating system, the R130 boasts a suite of rich software features. It's not just a router; it's a multi-functional device capable of acting as a DTU (Data Terminal Unit) or RTU (Remote Terminal Unit), providing flexible solutions for your industrial needs. With optional GPS capability, enable the embedded router ideal for IP camera, fleet tracking or access management applications.

   Additionally, the R130 is eSIM supported, making it easier to switch from one carrier to others.



 HIGHLIGHTS







Easy to integrate, deploy or mount

Flexible choice of different project.

Support various of mounting way includes DIN Rail Mount, Rack Mount and Desktop etc.




High performance, Industrial-Grade Design

Fan-free design, Robust housing and a wide operating temperature range (–40°C to 70°C). Resilient against strong magnetic interference. Dual power supplies for redundancy, isolated input, and a wide voltage range.


Secure and Reliable Network

Support robust security features, such as Multiple VPN – IPSec/OpenVPN/DMVPN/ WireGuard/ ZeroTier/ GRE/PPTP/L2TP, NAT, port forwarding, a stateful firewall and packet filtering, data encryption, Access Control List (ACL) and provide secure, reliable communications.



Serial Communication

With its RS232 and RS485 interfaces, the R130 is an ideal solution for serial communication with Meter/Sensor/Controller, supporting Serial port to IP features, Modbus RTU/TCP protocol, and MQTT protocol uploading.



Various Network Protocol

Supports Modbus RTU, TCP, HTTPS, MQTT, TR-069, SNMPv3 and IPv6 protocol, make the router satisfy with different network demand.





eSIM optional

Flexible choice for different carriers, making it easier to switch from one carrier to another.

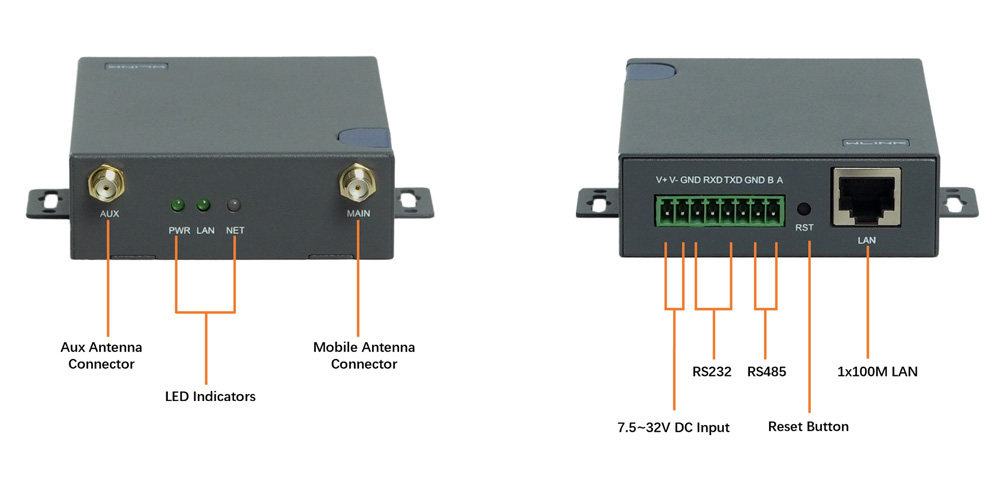

INTERFACE DIAGRAM

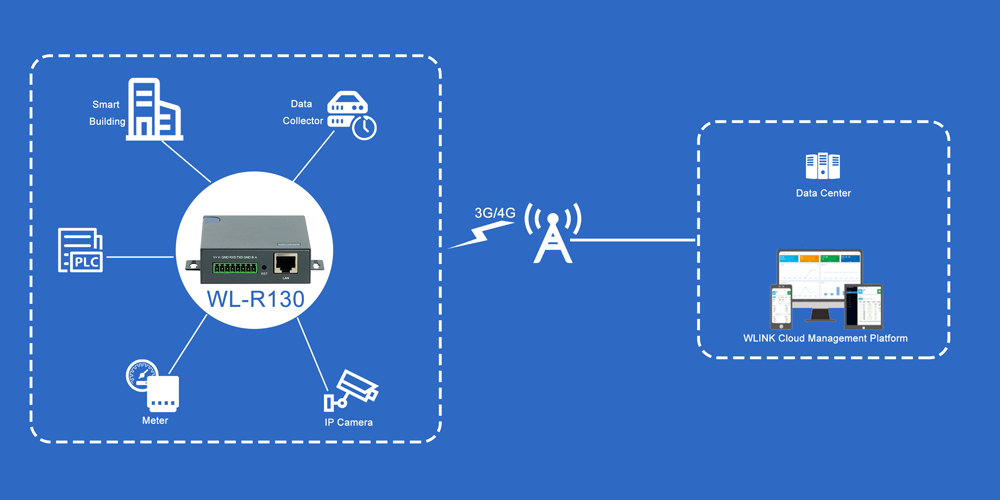

CLASSIFICATION APPLICATION
