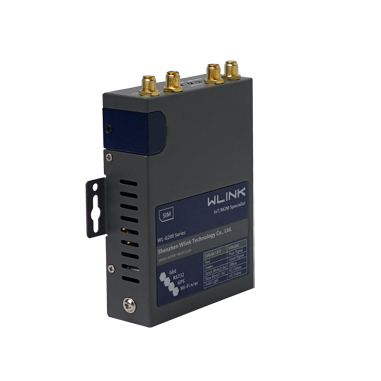

G200 M2M 4G+/5G Router
M2M IoT router, Compact, Gigabit Ethernet, Compatible with 4G+/5G,
Wlink WL-G200 is the compact, powerful M2M LTE router. Equipped with high-performance industrial communication processor ARM Cortex A7 900MHz and 2x Gigabit Ethernet ports, it ensures the users with stable connection and high data throughput.
Simultaneous 802.11n/ac Wi-Fi (2.4GHz & 5GHz) is an option for applications which hotspot functionality is required. GPS is optional supported for users who need location tracking. It is the router perfect for advanced Industrial and Enterprise applications.
Ultra-Performance
Robust
Secure
|
Physical | |||
Optional Cellular Network |
| Hardware System |
|
Interface |
| GPS (Optional) |
|
LED Indicators |
| Wi-Fi |
|
Consumption |
(with Wi-Fi) 235mA@+12VDC | Other |
|
Compliance |
| Package Content |
|
Software | |||
Operating System |
| Firewall |
|
Network Protocol |
| Network Monitoring |
|
VPN |
| Network Features |
|
Router Management |
| WLAN Mode |
|
Wi-Fi Network Mode |
| WiFi Security |
|
Partial Order Number List | ||||||||||
Part No. | 4G/4G+ | 3G | Port | SIM | Region | Category | DL | UL | WiFi | GPS |
WL-G200-LFX-w | LTE-FDD: B1/B3/B7/B8/B20/B28A LTE-TDD: B38/B40/41 | B1/B8 | 1x GbE LAN 1x GbE LAN/WAN | One | Asia Europe Africa | Cat4 | 150M | 50M | 802.11 b/n/ac | |
WL-G200-LFX-wg | 802.11 b/n/ac | √ | ||||||||
WL-G200-LF-w | FDD-LTE: B1/B3/B5/B7/B8/B20) TDD-LTE: B38/B40/B41 | B1/B5/B8 | 1x GbE LAN 1x GbE LAN/WAN | One | Asia Europe Africa | Cat4 | 150M | 50M | 802.11 b/n/ac | |
WL-G200-LF-wg | 802.11 b/n/ac | √ | ||||||||
WL-G200-LF1-w | FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28 TDD-LTE: 2300MHz (B40) | B1/B2/B5/B8 | 1x GbE LAN 1x GbE LAN/WAN | One | Australia Brazil | Cat4 | 150M | 50M | 802.11 b/n/ac | |
WL-G200-LF1-wg | 802.11 b/n/ac | √ | ||||||||
WL-G200-LG-w | FDD-LTE: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 TDD:-LTE B38/39/40/41 | B1/B2/B4/B5/B6/B8/B19 | 1x GbE LAN 1x GbE LAN/WAN | One | Australia Brazil | Cat4 | 150M | 50M | 802.11 b/n/ac | |
WL-G200-LG-wg | 802.11 b/n/ac | √ | ||||||||
WL-G200-LF6-w | FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 TDD-LTE: B38/ B40/B41 | B1/B3/B5/B8 | 1x GbE LAN 1x GbE LAN/WAN | One | Asia Europe Africa Australia | Cat6 | 300M | 50M | 802.11 b/n/ac | |
WL-G200-LF6-wg | 802.11 b/n/ac | √ | ||||||||
WL-G200-LF7-w | FDD-LTE: B2/B4/B5/B7/B12/B13/B17/B25/ B26/B29/B30/B66 TDD-LTE: B40 | B2/B4/B5 | 1x GbE LAN 1x GbE LAN/WAN | One | North Amefrica | Cat6 | 300M | 50M | 802.11 b/n/ac | |
WL-G200-LF7-wg | 802.11 b/n/ac | √ | ||||||||
WL-G200-LF8-w | FDD-LTD: B2/B3/B4/B5/B7/B8/B20/B28 | B2/B3/B4/B5/B8 | 1x GbE LAN 1x GbE LAN/WAN | One | Latin America | Cat6 | 300M | 50M | 802.11 b/n/ac | |
WL-G200-LF8-wg | 802.11 b/n/ac | √ | ||||||||
WL-G200-LM-w | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B21/B25/B26/B28/B29/B30/B32/B66 LTE-TDD:B38/B39/B40/B41 | B1/B2/B4/B5/B8 | 1x GbE LAN 1x GbE LAN/WAN | One | Worldwide | Cat12 | 300M | 50M | 802.11 b/n/ac | |
WL-G200-LM-wg | 802.11 b/n/ac | √ | ||||||||
Note: 1. If request other frequency band model, please consult wlink sales person. 2. Please sepcify when order if request other optional features. 3. The above list only includes partial available models, please consult wlink sales person if can't find a suitable one. |
