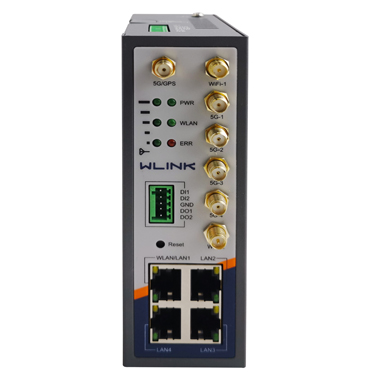

G530 M2M 5G Router

产品大图

WLINK WL-G530 is an M2M 5G router offering Ultra speed, Reliable Low-Latency Communication, ideal for Industrial IoT project.

gateway_sm gateway_sm gateway_sm
  • Overview
  • Specification
  • Order Model
  • Documentation

5G represents the 5th generation mobile networks and it would replace 4G LTE mainly due to the prominence that the internet of things technology is going to get in near future.

WLINK G530 is the Industrial 5G router upgraded from the classic G510 LTE router, equipped with ruggedized enclosure, powerful internal components to handle temperature extremes, dust and moisture and terminal block for secure power supply. It features 4x100/1000M ethernet port, RS-232/485 serial port, DI/DO port, as well as Redundant SIM slots. Ideal for harsh environments, WLINK G530 5G router provide the rugged, reliable network connectivity and remote management tools for heavy-duty industrial IoT application including manufacturing, utilities, oil & gas, metals & mining, retail, healthcare, transportation & logistics, smart city, Embb (Enhanced Mobile Broadband) and others automotive use cased which only require low latency and high reliability.

 The global version G530 nearly covers all the mainstream carriers worldwide, this gives customers the flexibility to choose from a host of carries that serve different location. G530 router upgrades your mobile broadband experience incredible 5G blazing speeds.

The 5G router will be extraordinary - for every industry, every business and every experience. Explore how to monetize your 5G investment and capture the opportunities of this new time.


 HIGHLIGHTS FEATURES




Incredible Speed

5G blazing fast Mobile Broadband Internet, delivering ground-breaking download speeds up to 4Gbps.



High performance, Industrial-Grade DesignFan-free design, Robust housing and a wide operating temperature range (–40°C to 70°C).

Resilient against strong magnetic interference. Dual power supplies for redundancy, isolated input, and a wide

voltage range (7.5 V DC to 60 V DC)



Low latency, increased capacity

Low Latency is a major advancement of 5G. It basically means how long a data packet needs to travel from device or from mobile to server. Massive MIMO can help boost link quality and reliability, and increase capacity w/o requiring more spectrum aswell as superior energy efficiency.



Extensive Interfaces, Enabling Flexible Expansion

Multiple interfaces, including Gigabit Ethernet, RS-232, RS-485, USB and DI/DO. IP-based PLC communication,

with support for IPv6, and plug-and-play terminals. GPS tracking and Storage is option to be added on G530.



Cloud-Based Platform Management

G530 can be managed via cloud management platform which provide easy setup, centralized configuration, network analysis and maintenance of large installations. With the platform, the operator can remotely manage and monitor all of routers, Wi-Fi users’ status, update configuration files, Statistics, firmware upgrade and advertisement Update.



Secure and Reliable Network

Support robust security features, such as PPTP/L2TP, OpenVPN, IPsec, NAT, port forwarding, a stateful firewall and packet filtering, data encryption, Access Control List (ACL) and provide secure, reliable communications.

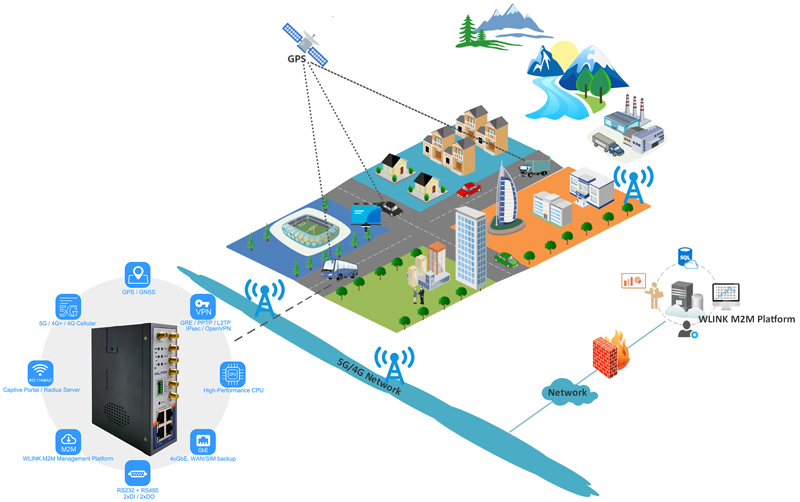

INTERFACE DIAGRAM



CLASSIFICATION APPLICATION

eMBB (enhanced Mobile Broadband)

URLLC (Ultra Reliable Low Latency Communications)Massive IoT

Key network considerations Per-connection peak

speed,network capacity Includes streaming and

high definition video, 360 degree video, public

transit, and other data-intensive and image-intensive

use cases

Key network considerations Reliability, latency such as VR and AR, remote control of critical infrastructure,

vehicles, Industrial automation and utilities

Key network considerations scalability to very large

number of connections includes Smart City, Connected Vehicles, Smart Home, Smart Media, Smart Factories,

Healthcare, Smart Metering, Smart Grid, Oil and gas
